Description

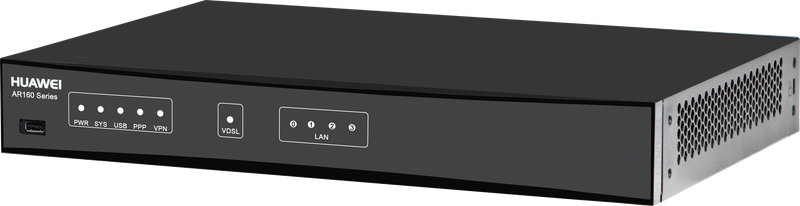

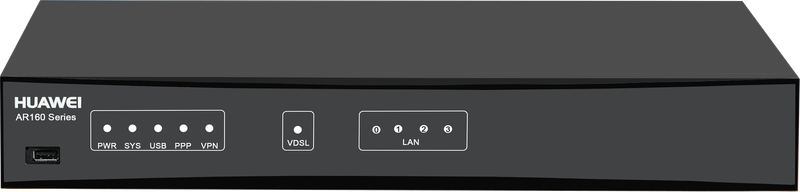

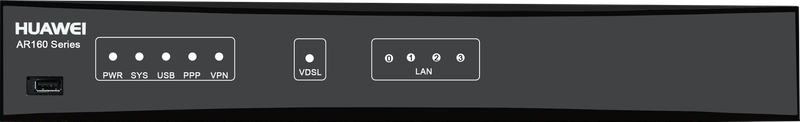

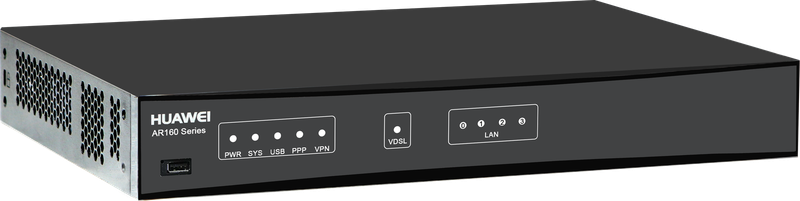

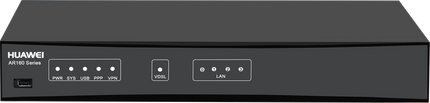

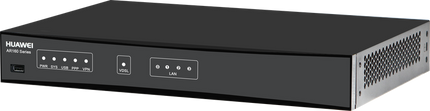

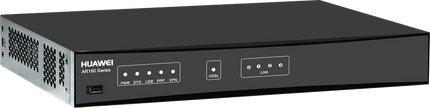

The Huawei AR160 Series Router AR169 is designed to support high-speed connectivity with a focus on efficient data routing and secure network management for small-to-medium-sized enterprises. It features one VDSL WAN port and four Gigabit Ethernet LAN ports, catering to enterprise branches that require flexible network deployments. This model integrates advanced security features and supports multiple VPN protocols, such as GRE and IPsec VPNs, ensuring secure connections between enterprise branches and headquarters or partner networks.
The AR169 can also function as a VoIP gateway with support for integrated voice services, and it includes wireless capabilities in some configurations to enable comprehensive connectivity options. With capabilities for backup LTE connections, this model provides network redundancy, making it a reliable choice for businesses that need consistent and secure network access. The AR160 series is built on Huawei’s VRP operating system, known for stability, and features a modular design that ensures scalable deployment in growing IT environments.

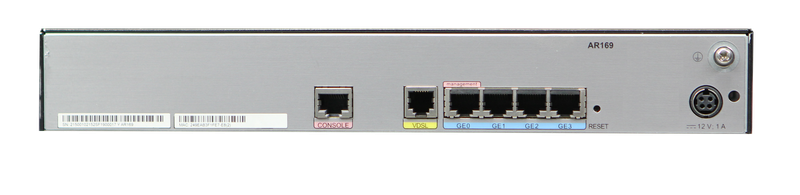

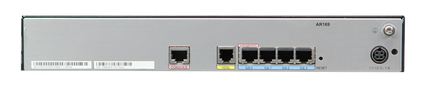

WAN & LAN Ports
-
1× VDSL2 WAN (backward-compatible with ADSL2+)
-
4× auto-sensing Gigabit Ethernet LAN (RJ?45), which can be reconfigured as WAN ports
Performance Specs
-
Routing throughput up to 150?Mbps (IMIX)
-
Supports up to ~50 users
Hardware & Ports
-
512 MB RAM, 512 MB flash
-
1× USB 2.0, 1× console/AUX (serial), RESET button
Power & Dimensions
-
External AC adapter (100 240 V, 50/60 Hz), ~24 W power use
-
Measures 300 x 216 x 44 mm and weighs ~2.8 kg
Software & Security
-
Huawei VRP OS with enterprise features: IPv4/IPv6, BGP/OSPF, VLANs, QoS, firewall, ACLs
- VPN support: IPsec, GRE, DSVPN, L2TP ideal for secure branches
Why Choose the AR169?
-
Fanless & Quiet Perfect for office environments where noise is a distraction
- All in One Integration Combines routing, firewalling, VPN, and optional wireless functionality in one sturdy box
-
Reliable for Branches Built for stability, with hardware encryption and expandable WAN/LAN configuration
Technical Specs at a Glance
| Feature |
Spec |
| Memory / Storage |
512 MB RAM, 512 MB flash |
| WAN Interface |
1× VDSL2 (works with ADSL2+; Annex A/M/B/J) |
| LAN Interfaces |
4× Gigabit Ethernet (auto-configurable) |
| USB / Console |
1× USB 2.0, 1× serial console (mini USB also supported) |
| Power |
100 240 VAC adapter ~24W consumption |
| Dimensions |
300×216×44mm; 2.8kg weight |
| OS & Security |
VRP OS, VLAN, QoS, ACLs, IPsec/GRE/L2TP VPN |
Usage & Deployment Ideas
-
Perfect for branch office gateways VDSL uplink works well for many broadband lines, with GigE LAN for fast local connectivity.
-
Can serve as a secure firewall/router for small offices, offering robust VPN tunnels back to HQ.
- Ideal in noise-sensitive environments (e.g., retail, clinics) due to its fanless design.
|
AR169
|
|
|
WAN speed with services* (IMIX)
|
150 Mbps
|
|
Number of recommended users
|
50
|
|
Fixed WAN ports
|
1 x VDSL2 (compatible with ADSL2+ Annex A/M, Annex B/J)
|
|
Fixed Ethernet switching ports
|
4 x GE(can be configured as WAN interfaces)
|
|
Integrated LTE
|
|
|
Wi-Fi
|
|
|
USB 2.0 ports
|
1
|
|
console ports
|
1
|
|
Memory size
|
512 MB
|
|
Flash memory
|
512 MB
|
|
Maximum power
|
24 W
|
|
Power supply (AC)
|
100 V to 240 V
|
|
Frequency
|
50/60 Hz
|
|
Dimensions (H x W x D)
|
44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.)
|
|
Operating temperature
|
0C to 45C
|
|
Relative humidity
|
5% to 95% (noncondensing)
|
